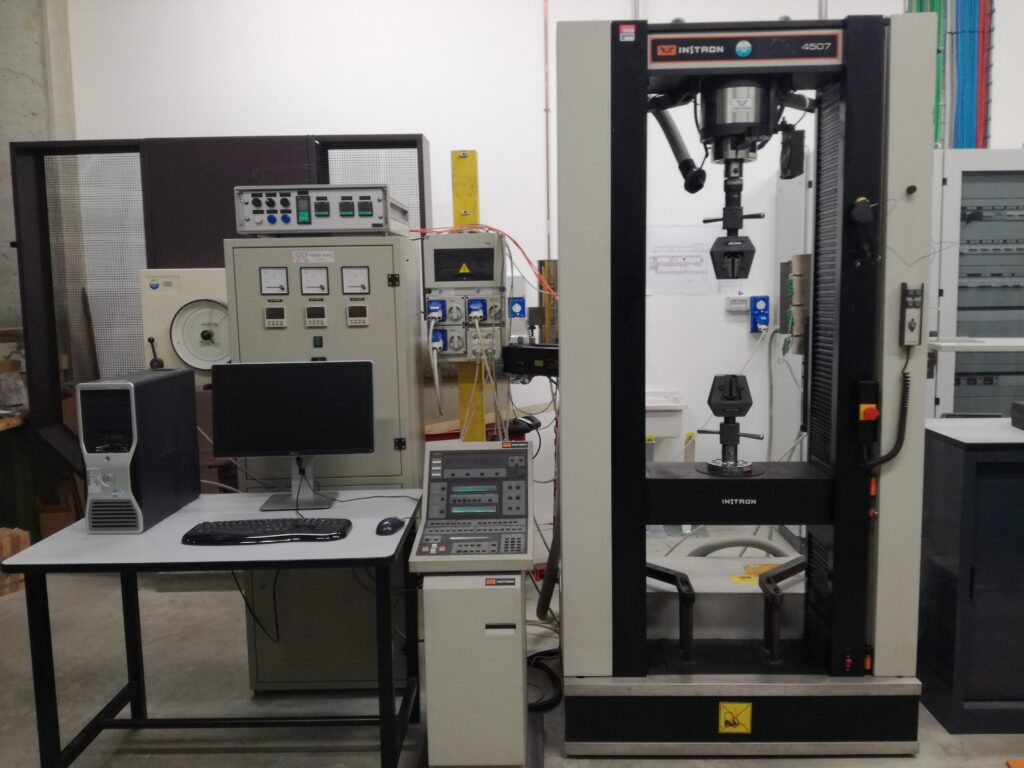

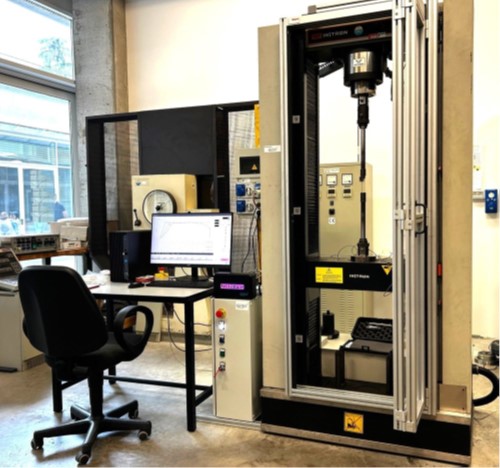

INSTRON, mod. 4507
Typeof test:
- Tensile
- Compression
- 3 point bending
- Low cycle axial fatigue (frequency <=0.7 Hz)
- Custom tests
Main features:
- Load capacity: 100 kN
- C.C. main drive motor
- Crosshead travel between limits: 1300 mm
- Max available lenght for test: 1000 mm
- Movable crosshead speed: from 0.001 to 500 mm/min.
Load tranducers:
- 200 kN (tensile and compression) and 1 kN (tensile and compression) load cells
Estensometers:
- Clip-on-gage extensometer for ambient temperature tensile tests: gauge length: 12.5, 25, 50 mm, max travel ± 5 mm
- Clip-on-gage extensometer for ambient temperature tensile tests: gauge length: 50 mm, max travel – 5/+50 mm
- Quartz rod extensometer for high temperature tensile tests: gauge length: 50 mm, max travel ± 5 mm
Accessories:
- furnace for high temperature tensile test (max 900 °C); diameter 90mm, heated zone length 300 mm, isothermal zone length 80 mm
- furnace for high temperature compression test (max 1200 °C); diameter 90 mm, heated zone length 300 mm, isothermal zone length 80 mm
